Series Type 13Download PDFCatalogue No.: UT-Flexi-13 | Revision 00

Flexilink Type 13 coupling is used to connect shaft to flange. Its unique feature is that it can be removed in situ without disturbing connecting machines.

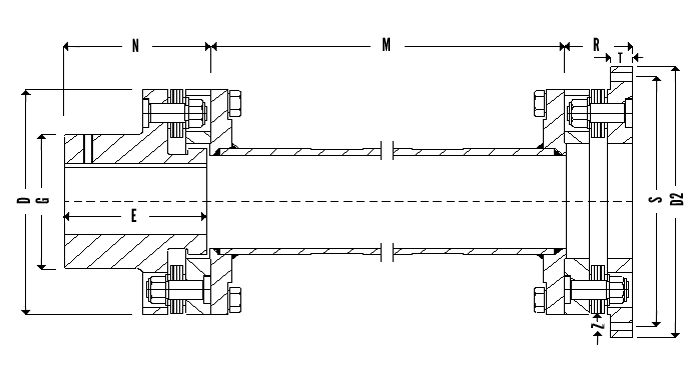

General Assembly Drawing

Flexilink Coupling Type 13 Diagram

Dimensions and Standard Sizes

Nominal Rating
Size HP/100 Torque Peak
Overload
Torque		 Max
Speed		 Max
Bore		 D Dia G Dia E N M Min O R
  RPM NM NM RPM MM MM MM MM MM MM MM MM
251 35.1 2500 6250 5600 75 230 125 110 115 140 105 56.5
321 44.9 3200 8000 5200 85 245 140 110 115 160 115 58.5
401 56.1 4000 10000 4800 95 270 155 125 132 170 135 62.5
501 70.2 5000 18000 4400 105 300 165 130 138 180 150 73.5
631 88.4 6300 22500 4000 120 325 185 130 138 190 160 81.5
801 112.0 8000 28000 3700 130 350 210 145 153 200 180 85.5
1000 140.0 10000 20000 3400 140 370 215 145 154 210 190 79.5
1001 154.0 11000 34900 3400 140 370 225 155 164 210 190 89.5
1251 175.0 12500 43000 3200 150 395 230 170 179 225 200 100.5
1601 225.0 16000 54500 2900 160 415 255 190 199 240 220 100.5
2000 281.0 20000 40000 2700 180 450 260 175 184 254 230 93.5
2001 281.0 20000 68000 2700 180 450 260 195 204 254 230 117.5
2501 351.0 25000 84000 2500 190 470 280 220 227 268 240 119.5
3201 449.0 32000 106000 2300 200 500 305 255 265 280 260 127.5
4000 561.0 40000 80000 2100 210 550 310 210 220 300 290 115.5
4001 561.0 40000 131500 2100 210 550 340 275 285 300 290 137.5
5000 702.0 50000 100000 1950 230 590 332 230 240 310 320 125.5
5001 702.0 50000 160000 1950 230 590 370 305 315 310 320 141.5
6301 884.0 63000 205000 1800 260 650 420 310 325 330 360 151.5
8000 1123.0 80000 160000 1650 270 690 375 270 285 360 400 141.5
8001 1123.0 80000 254000 1650 280 750 450 360 375 360 400 159.5

Engineering Data

Max Misalgnment Change/Metre
Spacer Length
Size D2
Dia		 Z S Dia T Axial Radial Tor Stiff Axial Stiff Ang Stiff
(H CPLG)		 Mass Inertia MR2 Mass MR2
  MM NO*MM MM MM MM MM MNM/
RED		 N/MM NM/RED KG KGM2 KG KGM2
251 300 8*18 265 18 2.0 3.0 0.80 560 3250 42 0.33 18.10 0.04
321 315 8*18 280 19 2.0 3.0 0.98 450 3000 49 0.44 19.60 0.05
401 340 12*18 305 21 3.0 4.0 1.21 350 3000 67 0.69 23.40 0.08
501 365 12*18 330 23 4.0 4.0 1.55 560 11700 87 1.09 39.50 0.16
631 390 12*18 360 26 5.0 5.0 1.95 500 12380 109 1.64 32.00 0.14
801 430 12*22 395 27 6.0 5.0 2.65 635 18100 132 2.37 35.10 0.18
1000 450 12*22 410 24 6.0 5.0 2.57 350 11350 139 2.18 34.50 0.22
1001 450 12*22 410 29 6.0 5.0 3.00 560 18100 166 3.13 39.00 0.25
1251 470 12*22 435 33 6.0 6.0 3.75 750 28300 198 4.33 51.30 0.35
1601 495 12*26 455 33 6.0 6.0 4.12 600 25400 217 5.62 72.00 0.97
2000 530 12*26 490 28 8.0 6.5 4.75 580 27500 239 4.78 51.60 0.57
2001 530 12*26 490 40 8.0 6.5 5.45 820 38500 289 8.64 64.10 0.68
2501 565 12*26 520 39 8.0 7.0 6.70 945 51500 335 10.80 71.90 0.76
3201 595 12*26 550 40 8.0 7.0 8.75 1160 73000 408 14.50 80.80 1.07
4000 665 12*33 610 35 8.0 7.5 8.75 490 37000 454 13.20 88.70 1.42
4001 665 12*33 610 46 8.0 7.5 10.60 900 68000 556 24.00 101.00 1.68
5000 705 12*33 650 38 8.0 8.0 11.20 550 49000 559 18.50 100.00 2.02
5001 705 12*33 650 46 8.0 8.0 13.60 945 84000 661 32.50 100.00 2.02
6301 770 12*33 710 49 10.5 8.5 17.50 945 103000 841 50.20 132.00 3.11
8000 810 12*39 750 42 10.0 9.0 18.50 620 77000 795 36.90 124.00 3.88
8001 810 12*39 750 52 10.0 10.0 21.80 975 124000 1012 66.60 151.00 4.66
A- Mass & Inertia , Torsional Stiffness are with minimum spacer 'M''
B- Longer Spacer Lengths available as required
