Steel HubsDownload PDFCatalogue No.: UT-PBSTEEL | Revision 00

Coupling with steel iron hub is used for special application requiring high reliability.

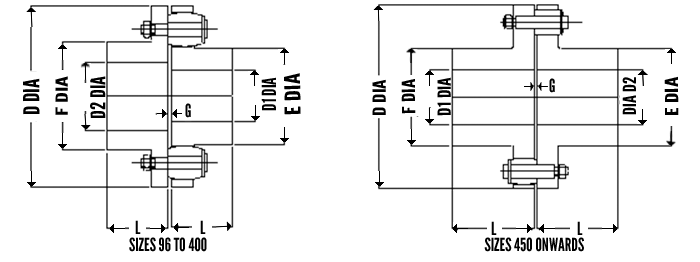

General Assembly Drawing

Series 80 CC Diagram

Dimensions and Standard Sizes

RATING

Max Bore
Size NO OF TORQUE HP/100 Max
Speed		 D1 Dia D2 Dia Di Dia E F L G
  PINS NM RPM RPM MM MM MM MM MM MM MM
96 8 125 1.75 7800 30 35 96 44 50 35 4
112 10 310 4.35 7200 43 48 112 62 68 45 4
125 8 520 7.30 6600 45 50 125 65 75 50 4
140 10 630 8.80 6000 53 60 140 76 88 55 4
160 9 750 10.50 5300 60 65 160 85 95 60 4
180 10 1250 17.50 4900 70 75 180 102 112 70 4
200 12 1600 22.40 4600 85 90 220 120 128 80 4
225 11 2400 33.70 4400 90 100 225 134 144 90 7
250 12 3540 49.70 4200 105 115 250 154 164 100 7
285 11 5200 0.73 3900 115 120 285 166 176 110 7
320 12 6840 96.00 3500 130 135 320 190 195 125 7
360 11 10600 149.00 3100 145 150 360 205 210 140 10
400 10 15750 221.00 2800 150 160 400 218 320 160 10
450 12 21000 295.00 2500 180 180 450 255 255 180 6
500 14 27500 385.00 2200 200 200 500 290 290 200 6
560 10 39000 547.00 2000 225 225 560 320 320 220 6
630A 12 52000 730.00 1800 200 200 630 300 300 240 6
630B 12 52000 730.00 1800 250 250 630 355 355 240 6
710A 12 84000 1179.00 1600 240 240 710 350 350 290 7
710B 12 84000 1179.00 1600 280 280 710 400 400 290 7
800A 14 110000 1543.00 1400 280 280 800 420 420 290 7
800B 14 110000 1543.00 1400 320 320 800 460 460 290 7
800C 14 110000 1543.00 1400 340 340 800 490 490 290 7
900A 16 190000 2666.00 1240 315 315 900 470 470 340 7
900B 16 190000 2666.00 1240 360 360 900 515 515 340 7
900C 16 190000 2666.00 1240 390 390 900 560 560 340 7
1000A 18 260000 3650.00 1110 310 310 1000 480 480 400 10
1000B 18 260000 3650.00 1110 360 360 1000 530 530 400 10
1000C 18 260000 3650.00 1110 410 410 1000 590 590 400 10
1100A 16 320000 4490.00 1000 370 370 1100 540 540 440 10
1100B 16 320000 4490.00 1000 400 400 1100 595 595 440 10
1100C 16 320000 4490.00 1000 450 450 1100 650 650 440 10
1200A 18 400000 5613.00 915 390 390 1200 570 570 480 10
1200B 18 400000 5613.00 915 440 440 1200 640 640 480 10
1200C 18 400000 5613.00 915 500 500 1200 720 720 480 10
